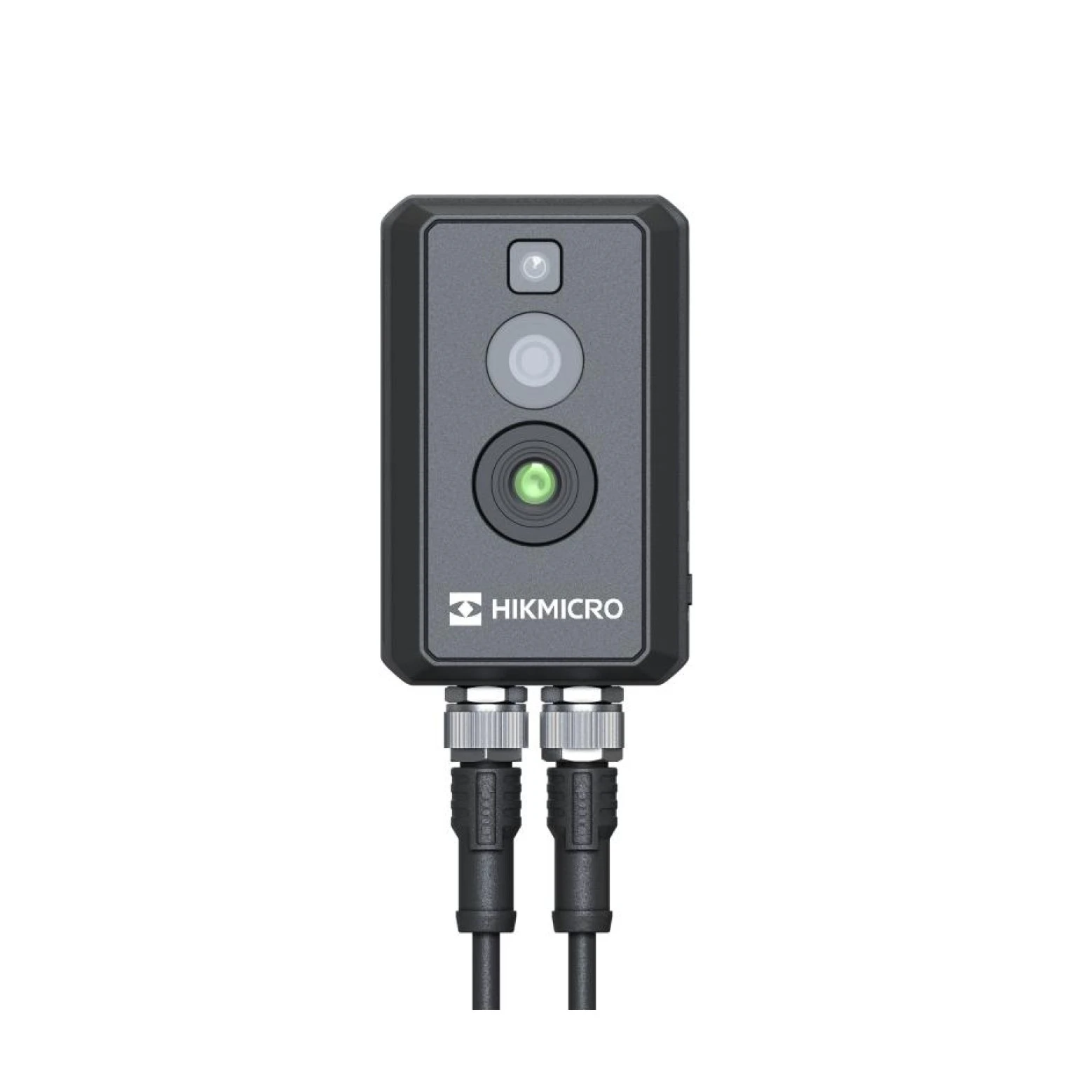

The Hikvision HM-TD3028T-2/Q(B) is a professional thermal Cube Camera designed for accurate temperature measurement, early fire detection, and industrial surveillance. The camera combines a sensitive 256 × 192 thermal sensor with an optical camera that has a maximum resolution of 2688 × 1520 pixels (4MP). This allows not only for the detection of heat generation and temperature anomalies, but also for their visual assessment.
The HM-TD3028T-2/Q(B) was specifically developed for applications where temperature is a key indicator of potential malfunctions or fire hazards. Examples include electrical installations, technical rooms, industrial processes, machinery, power facilities, warehouses, and other locations where early detection of abnormal heat generation is essential.
Accurate thermographic temperature measurement
The Hikvision HM-TD3028T-2/Q(B) features a thermal detector with a resolution of 256 × 192 pixels and a pixel pitch of 12 μm. This allows the camera to accurately detect and continuously monitor temperature differences.
The camera supports temperature measurement within ranges of -20 °C to 150 °C and 0 °C to 550 °C. The measurement accuracy is up to ±2 °C or ±2%. This makes the model suitable for professional applications where abnormal temperatures must be detected quickly.
Early Fire Detection
An important application of this thermal imaging camera is early fire detection. The camera can detect abnormal temperature changes before smoke or fire becomes visible to a traditional security camera.
When a preset temperature threshold is exceeded, an alarm can be triggered automatically. The built-in buzzer can also immediately sound an audible warning when a temperature anomaly is detected.
Combined Thermal and Optical Imaging
In addition to the thermal channel, the HM-TD3028T-2/Q(B) features a 4MP optical camera. This allows a detected heat source to be visually verified. The camera also supports image fusion, which combines details from the optical image with the thermal image.
This combination makes it easier to identify the exact location and cause of a temperature anomaly.
Point, Line, and Area Measurement
For professional temperature monitoring, the camera supports various measurement rules. Up to 21 temperature measurement rules can be set, consisting of 10 points, 10 areas, and 1 line.
In addition, the minimum and maximum measured temperatures can be displayed in the live image. This allows for continuous monitoring of specific machines, systems, or zones.
Suitable for industrial applications
The Hikvision HM-TD3028T-2/Q(B) is particularly well-suited for locations where temperature monitoring is part of preventive maintenance and fire safety. Possible applications include:
- Electrical installations and switchgear
- Technical rooms and server rooms
- Industrial machinery and production lines
- Warehouses and storage facilities
- Energy and power supply systems
- Battery storage
- Charging stations and technical infrastructure
- Preventive fire detection
PoE and professional integration options
The camera supports PoE (Power over Ethernet), allowing both power and network communication to be transmitted via a single network cable. In addition, the model features an RS-485 interface, alarm outputs, and support for Modbus TCP, among other capabilities. This allows the thermal imaging camera to be integrated into professional security, automation, and monitoring systems.
Rugged thermal imaging surveillance
Thanks to its IP67 rating, the HM-TD3028T-2/Q(B) can also be used in demanding environments. The combination of thermal detection, accurate temperature measurement, optical verification, and automatic alarm functions makes this camera a powerful solution for continuous temperature and fire monitoring.
Would you like to know if the Hikvision HM-TD3028T-2/Q(B) Thermography Cube Camera is suitable for your application? Please feel free to contact us. We’d be happy to help you select and configure a suitable thermographic security solution.
