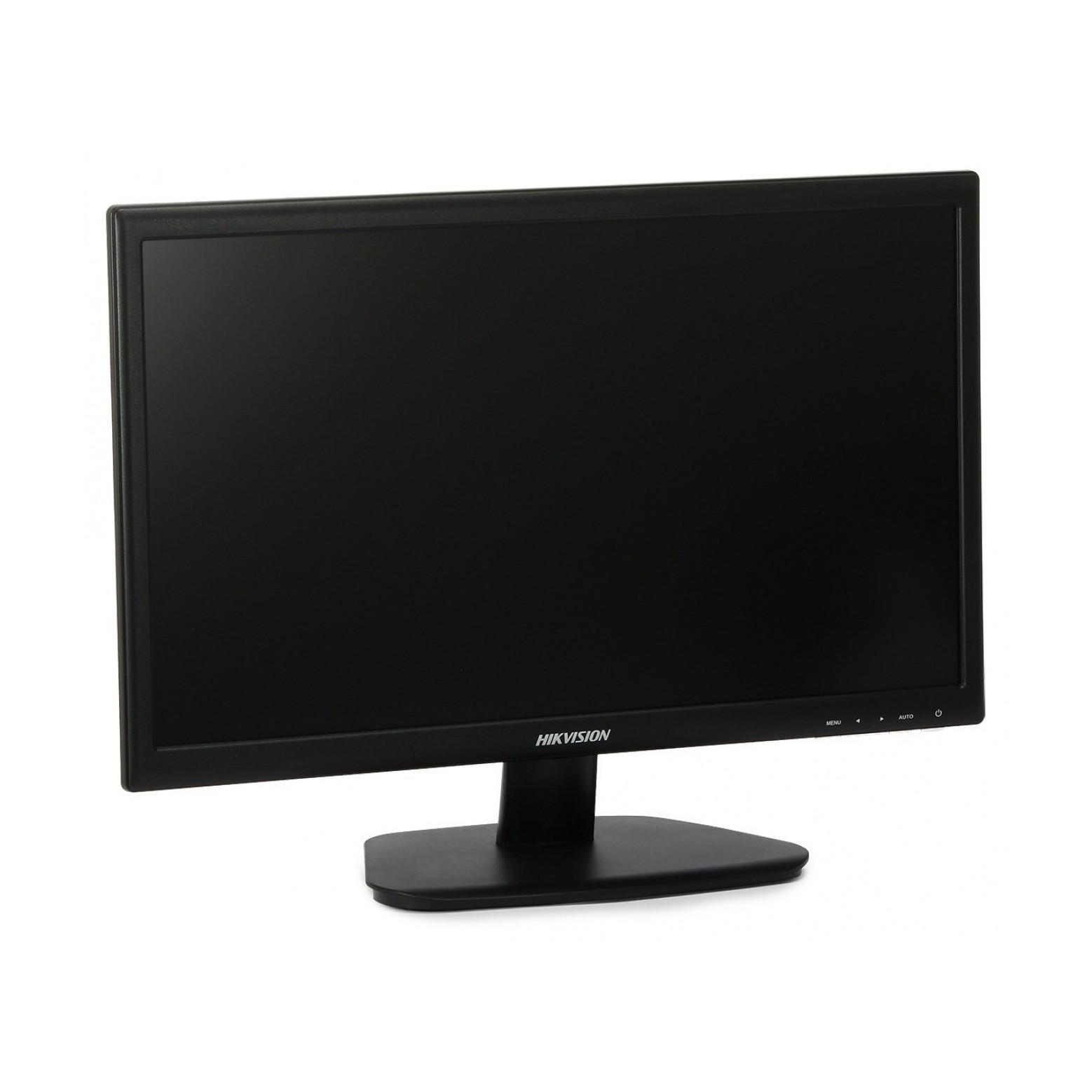

Hikvision DS-D5022FN -C21.5" LED monitor

The Hikvision DS-D5022FC monitor is specifically designed for continuous use in camera surveillance. The LED-backlit display with native resolution of 1920x1080 pixels displays colours correctly and has a very low response time of 5 ms. The input video signal can be provided via HDMI, VGA or BNC input. The BNC input (CAM IN) can be directly connected to a CVBS camera and the video signal can be further transmitted via the CAM OUT output. The monitor uses the standard VESA 100x100 mounting interface.

The DS-D5022FC monitor has an audio path and built-in speakers. The audio signal can be delivered via a 3.5 mm jack or RCA (CINCH) jacks. The amplified signal can be played back via the built-in speakers (2 x 2 W) or further processed via the jack output.

Features:

• Inch size: 21.5",
• LED-backlit display with Full HD resolution (1920 x 1080),
• Viewing angle: 170° (horizontal) / 160° (vertical),
• Video Input: HDMI, D-Sub (VGA), BNC (CVBS),
• Selectable input,
• Contrast: 1000:1,
• Brightness: 250 cd/m²,
• Audio inputs (jack 3.5 mm and RCA L+R) and outputs (jack 3.5 mm),
• Built-in 2 x 2 W speakers,
• CVBS path (2 x BNC: CAM IN and OUT),
• USB port for video playback,
• 16.7 million views,
• Mounting interface for wall mount: VESA 100 x 100 mm
