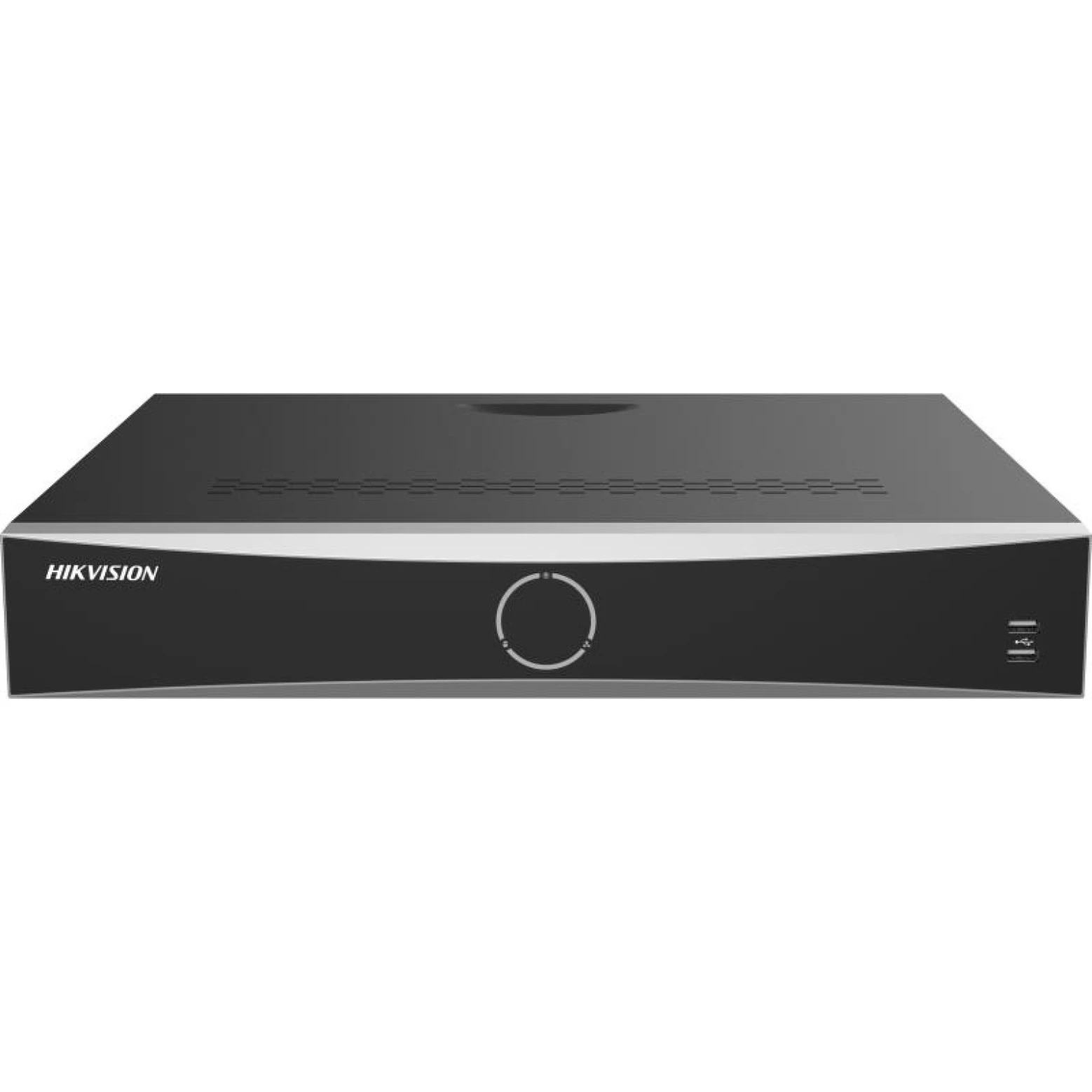

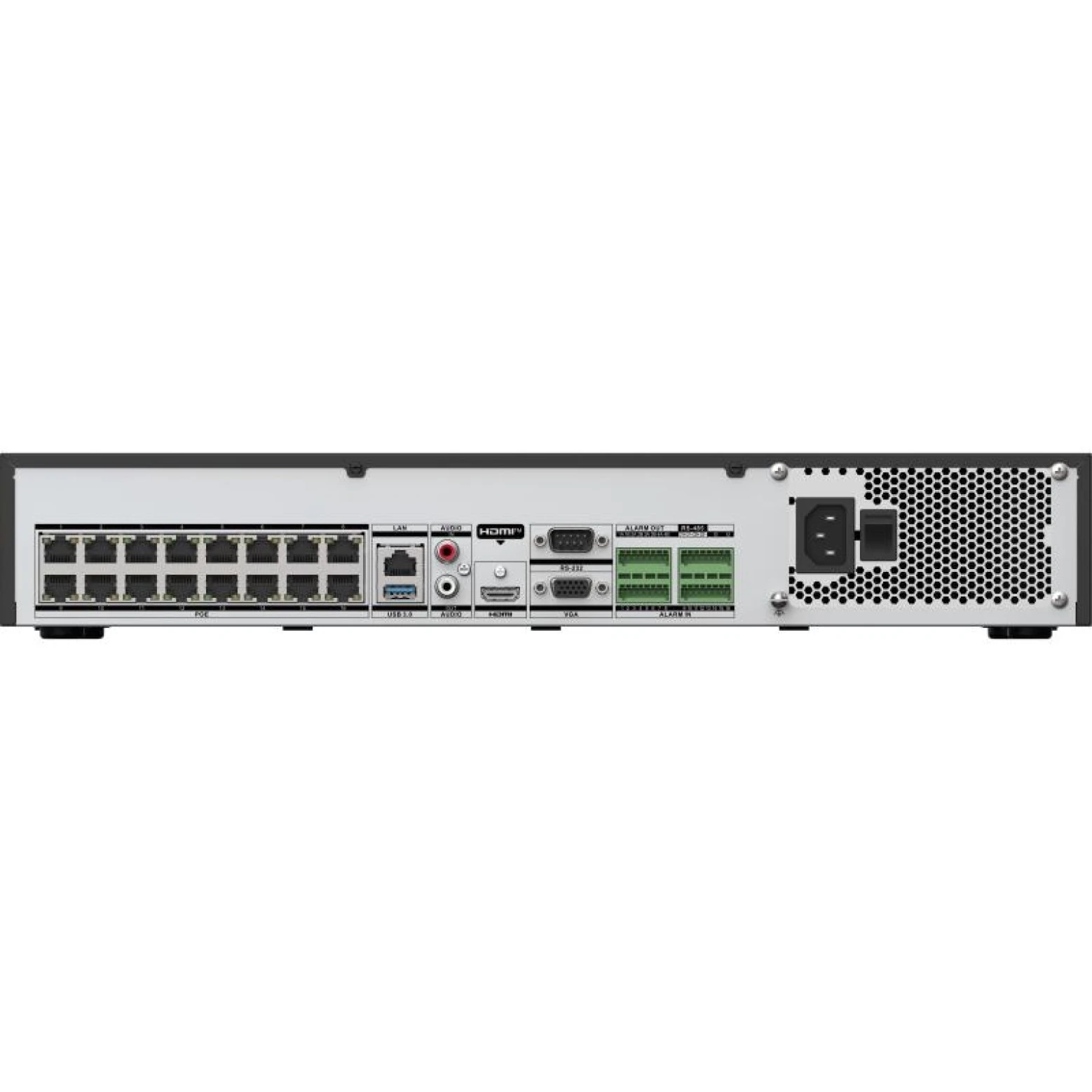

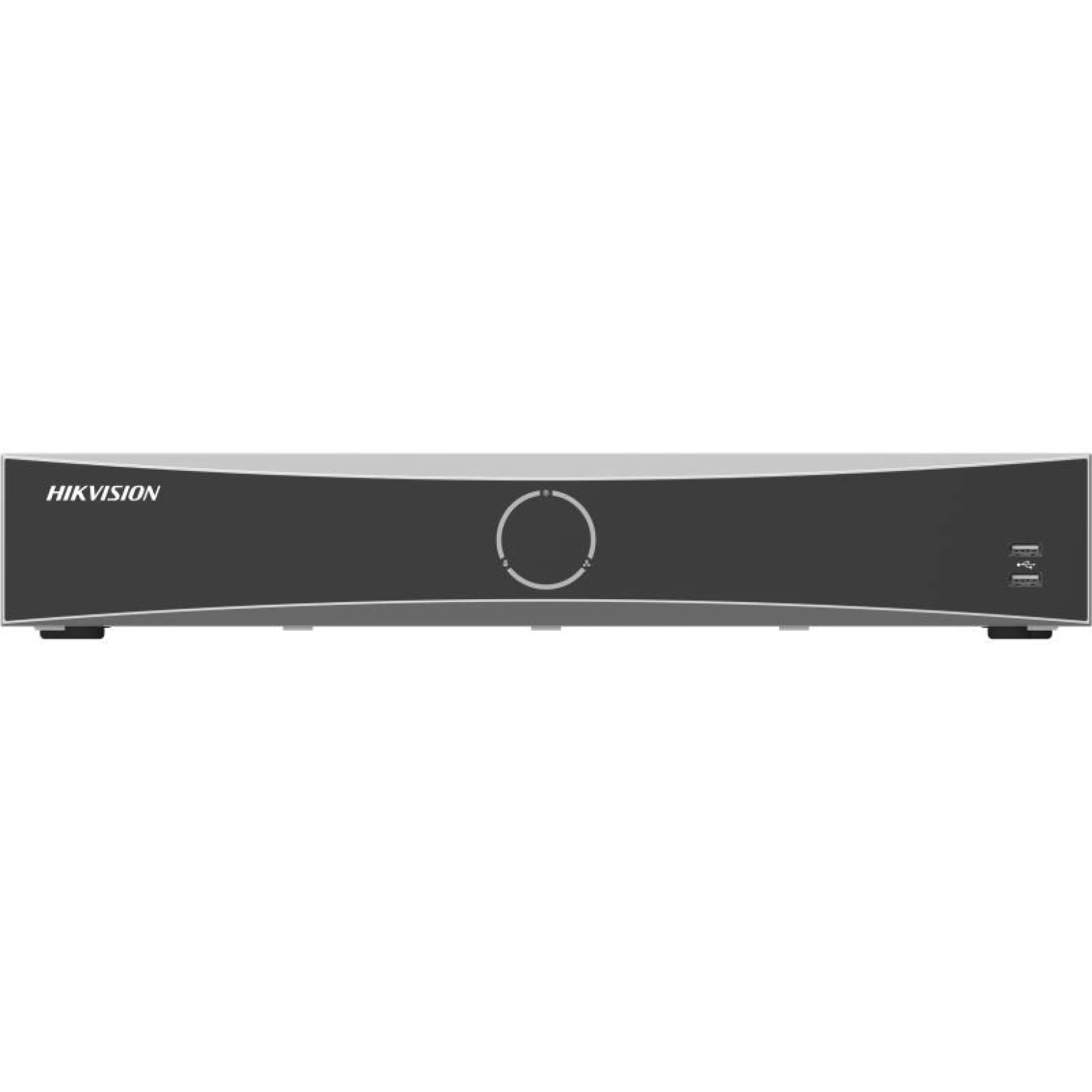

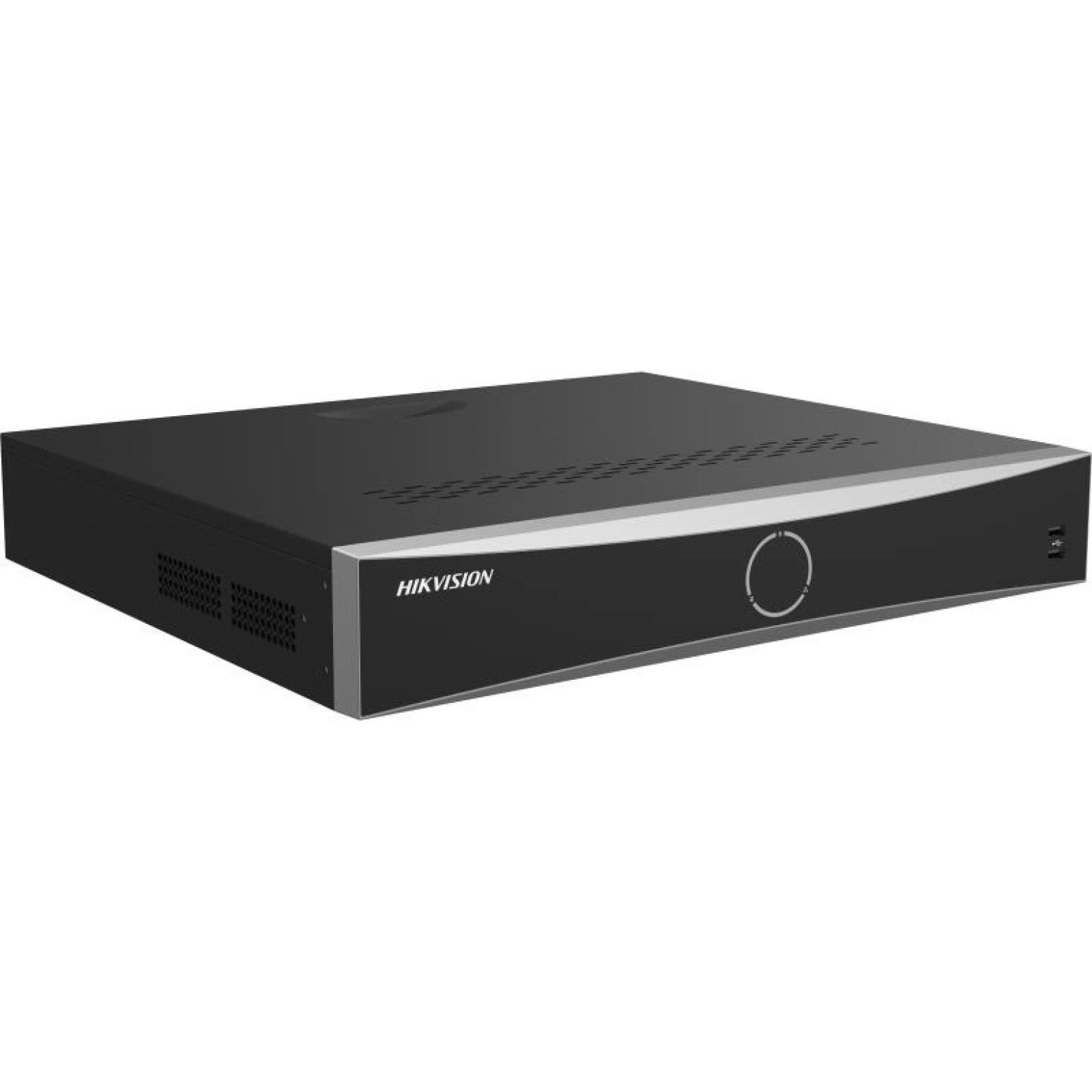

The Hikvision DS-7716NXI-K4/16P/VPro is a powerful 16-channel 4K PoE network video recorder from the latest Hikvision K/VPro series. With sixteen built-in PoE ports, support for camera resolutions up to 32 megapixels, four SATA ports, and intelligent AI features such as AcuSeek, AcuSearch, and AcuSense, this recorder is ideal for larger security installations at businesses, offices, warehouses, schools, healthcare facilities, and industrial sites.
New VPro Recorder with AcuSeek
With Hikvision AcuSeek, you can search recorded camera footage using an English text description. Instead of manually reviewing hours of video footage, you can easily search for, say, a person wearing specific clothing or a vehicle with certain characteristics.
When used with compatible Hikvision AcuSense cameras and a properly activated AcuSearch function, the recorder supports AcuSeek on up to sixteen channels. The system can process up to 50,000 targets per day.
Quickly Find People and Vehicles with AcuSearch
With AcuSearch, you can easily select a person or vehicle in a recording. The recorder then automatically searches for similar people or vehicles in other camera footage.
This allows incidents to be located within seconds without having to manually search through all recordings. This is ideal for stores, logistics centers, industrial parks, parking lots, and other locations where large amounts of camera footage are stored daily.
AcuSense Reduces False Alarms
The built-in AcuSense technology distinguishes people and vehicles from irrelevant movements such as leaves, rain, shadows, or animals. As a result, you receive significantly fewer false alarms and can respond more quickly to events that are actually important.
In addition, the recorder supports features such as Motion Detection 2.0, intelligent perimeter security, face detection, face comparison, and face search. When paired with compatible Hikvision cameras, features such as ANPR license plate recognition and advanced video analytics are also available.
Sixteen built-in PoE ports
The DS-7716NXI-K4/16P/VPro features sixteen integrated PoE ports. Both power and video signals are transmitted to the camera via a single network cable. As a result, separate power supplies or an external PoE switch are not necessary for most installations.
The recorder supports IEEE 802.3af and IEEE 802.3at and has a total PoE power output of 200 watts. Connected Hikvision cameras can be automatically detected and configured.
Support for up to 32 megapixels
This recorder supports IP cameras with resolutions up to 32 megapixels and is compatible with 4MP, 8MP, 12MP, 16MP, and 32MP cameras, among others.
The maximum incoming bandwidth is 256 Mbps, while the outgoing bandwidth is 200 Mbps. This makes the recorder ideal for larger installations with high resolutions.
Images can be displayed in 4K Ultra HD via the HDMI output. The HDMI and VGA outputs operate independently of each other.
Four hard drives with up to 64 TB of storage
The Hikvision DS-7716NXI-K4/16P/VPro features four SATA ports that can accommodate surveillance hard drives of up to 16 TB each. This provides a maximum internal storage capacity of 64 TB.
Thanks to this large storage capacity, the recorder is particularly well-suited for installations with many cameras or long retention periods.
The actual recording duration depends on the number of cameras, resolution, bitrate, frame rate, compression, and recording settings.
Efficient H.265+ Video Compression
Thanks to support for H.265+, camera footage is stored more efficiently, and significantly less network bandwidth is used without any noticeable loss of quality.
The recorder supports the following video formats:
-
H.265+
-
H.265
-
H.264+
-
H.264
Advanced Face Recognition and Smart AI Analysis
The recorder supports face detection, face comparison, and searching for stored face images. Up to 16 face libraries can be created, with a combined total of up to 50,000 face images.
The exact availability of AI features depends on the Hikvision cameras used and the selected configuration.
Viewing Footage with Hik-Connect
With the free Hik-Connect app, you can easily view live and recorded video footage via your smartphone, tablet, or computer. You can also receive push notifications when people, vehicles, or other configured events are detected.
Key Features
-
16 IP camera channels
-
16 built-in PoE ports
-
Maximum PoE power of 200 watts
-
New Hikvision K/VPro Series
-
AcuSeek – search using English text descriptions
-
AcuSearch – locate people and vehicles via image selection
-
AcuSense – intelligent recognition of people and vehicles
-
Motion Detection 2.0 and intelligent perimeter security
-
Support for face detection and face comparison
-
Support for cameras up to 32 megapixels
-
4K HDMI output and independent VGA output
-
Inbound bandwidth up to 256 Mbps
-
Outbound bandwidth up to 200 Mbps
-
4 SATA ports
-
Up to 16 TB per hard drive
-
Maximum internal storage capacity of 64 TB
-
Support for H.265+, H.265, H.264+, and H.264
-
Audio input and audio output for two-way audio
-
Support for alarm inputs and alarm outputs
-
Remote control via Hik-Connect
What applications is this recorder suitable for?
The Hikvision DS-7716NXI-K4/16P/VPro is designed for professional security installations with up to sixteen IP cameras where high performance and ample storage capacity are essential. Thanks to its four SATA ports, higher bandwidth, and support for cameras up to 32 megapixels, this model is particularly well-suited for commercial buildings, distribution centers, warehouses, retail stores, schools, healthcare facilities, parking garages, and industrial sites.
Please note: Hard drives are included only if explicitly stated for the selected product variant. Compatible Hikvision cameras and proper configuration are required to use AcuSeek, AcuSearch, and other AI features.
