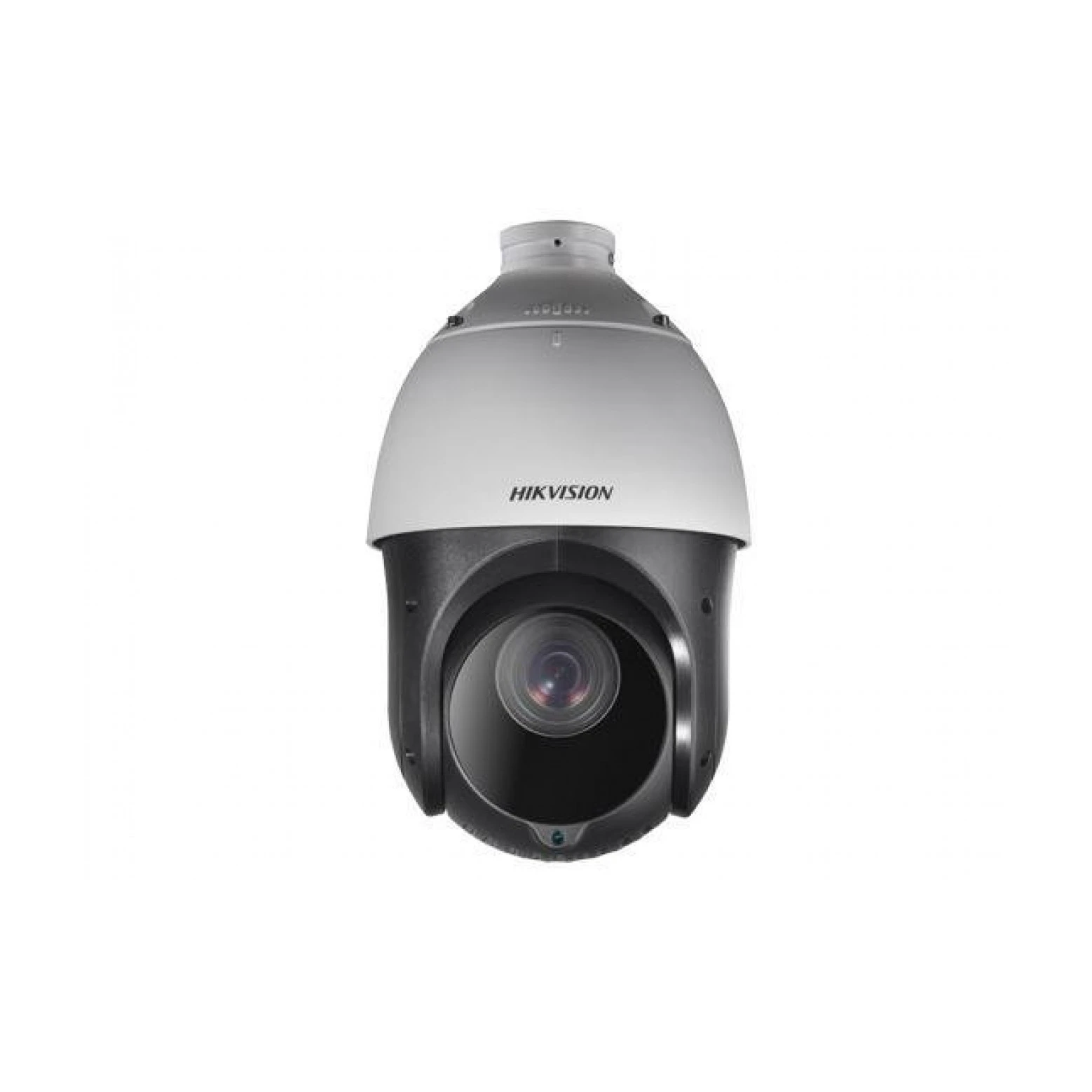

Hikvision DS-2DE4215IW-DE 2MP Network IR speed dome 15x zoom, 100 meters IR

This bracket is suitable for the PTZ:https://www.jaggsalarm.nl/hikvision-ds-1618zj-muurbeugel

Specifications

1/2.8" HD progressive scan CMOS

1920(H)x1080(V)

Color: 0.005 Lux @(F1.6, AGC ON)

B/W: 0.001Lux @(F1.6, AGC ON)

0 Lux with IR

Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

120dB

1-1/10,000s

Digital Zoom:

16X

24 privacy masks programmable; optional multiple colors and mosaics

Auto / Semi-automatic / Manual focus

Focal Length: 5 mm to 75 mm, 15× optical zoom

Zoom Speed: Approx. 2.3 s (optical lens, wide-tele)

Angle of View:

Horizontal field of view: 53.8° to 4° (Wide-Tele)

Vertical field of view: 31.9° to 2.3° (Wide-Tele)

Diagonal field of view: 60.4° to 4.6° (Wide-Tele)

Minimum Working Distance:

10-1,500mm(Wide-Tele)

Pan & Tilt

Pan Range: 360°endless

Pan Speed: Configurable, from 0.1°/s to 80°/s,

Preset speed: 80°/s

Tilt Range: -15°-90° (Auto Flip)

Tilt Speed: Configurable, from 0.1°/s to 80°/s,

Preset speed: 80°/s

Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset: 300

Patrol: 8 patrols, up to 32 presets per patrol

Pattern: 4 pattern scans, record time over 10 minutes for each scan

Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

IR irradiation distance: 100m

IR irradiation angle: Adjustable by zoom
