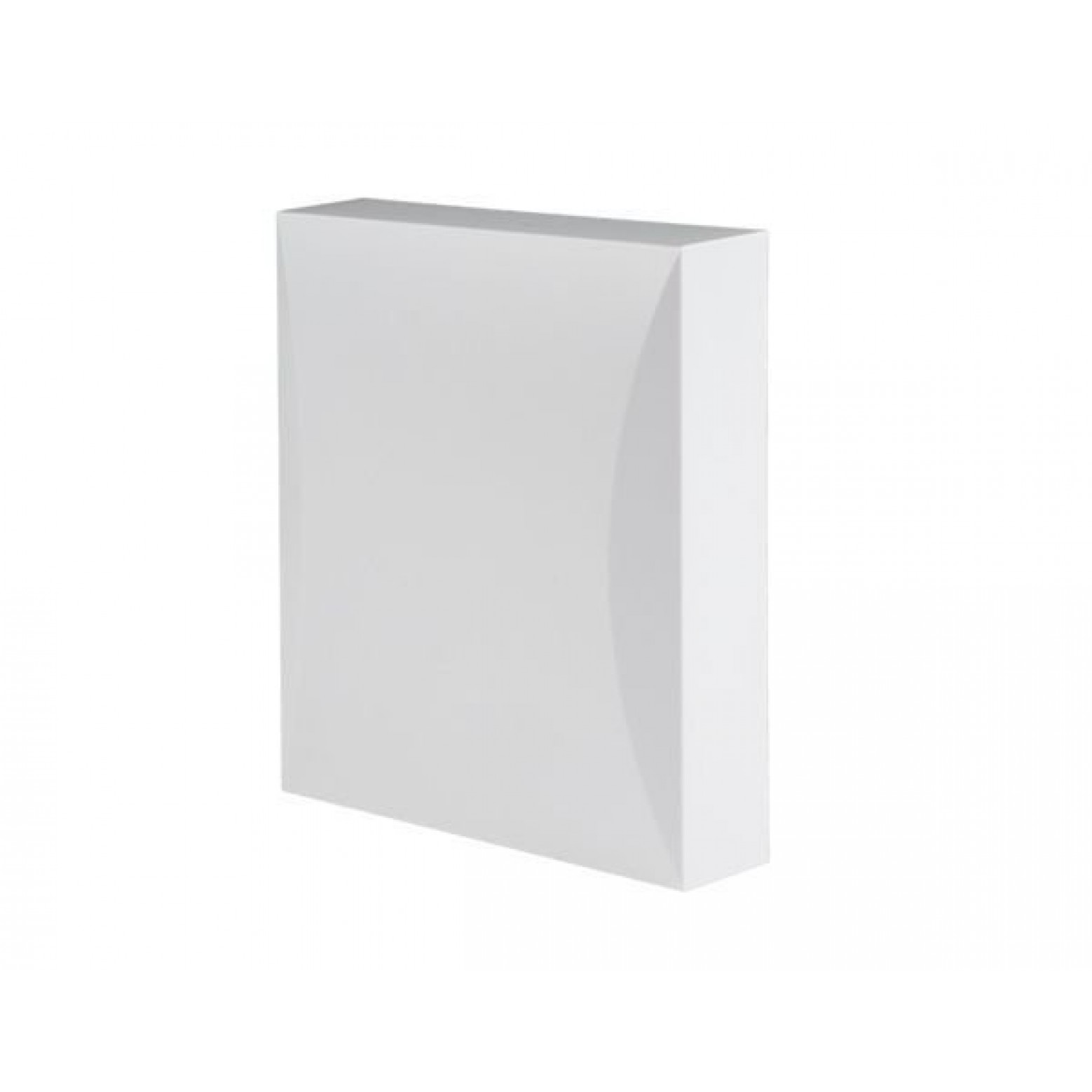

The bus thermometer can be used in outdoor environments or environments with demanding climatic conditions.
In the MyJABLOTRON application a temperature diagram can be drawn, when a certain temperature is reached temperature alarms or switching of PGs can be set.
The thermometer is designed for the control units of the JABLOTRON system 100.
It measures the internal temperature, or an external temperature sensor (JB-TS-PT1000)
JB-EXT-TH-B can be connected with a measuring temperature range of -50 °C to +200 °C.
Features:
- Operating temperature: -40 °C to +60 °C
- Operating humidity: 0 % - 100 %
- Power supply: 12 V from the bus
- Communication protocol: JABLOTRON 100
- Measured temperature range for the internal temperature sensor: -40 °C to +60 °C
- Measured temperature range for the external temperature sensor: -50 °C to +200 °C
- Ingress protection class: IP 53
